MONO Pressure KIT

This Mono-Meter measures Pressure.

The units are simple and small with powerful features.

Can be used as a diagnostic tool for fault finding of pressures.

Main Features:

• 4 Pressure Inputs
• Uses Madman MPS 2, 5, 7 and 10 Bar Threaded Sensors
• Selectable sensor per channel

• Min/Max Display

• Data logging to .csv file for all 4 channels

• Download log file via wi-fi
• The units do not contain any alarm functions


Applications:

• Before and After Turbo boost pressure assessment
• Fuel supply and return pressure assessment
• Coolant pressure assessment
• Hydraulic systems
• Engine and Autobox oil
• Engine oil and air filter restrictions and other vacuum circuits like brakes


Additional Options:

• If more pressure measurements are needed, you can purchase 2 additional Madman Pressure Senders 2 bar, 5 Bar, 7 Bar and 10 Bar (part numbers MPS2, MPS5, MPS7 or MPS10), i.e. the MONO pressure unit can measure measuring 4 total pressures

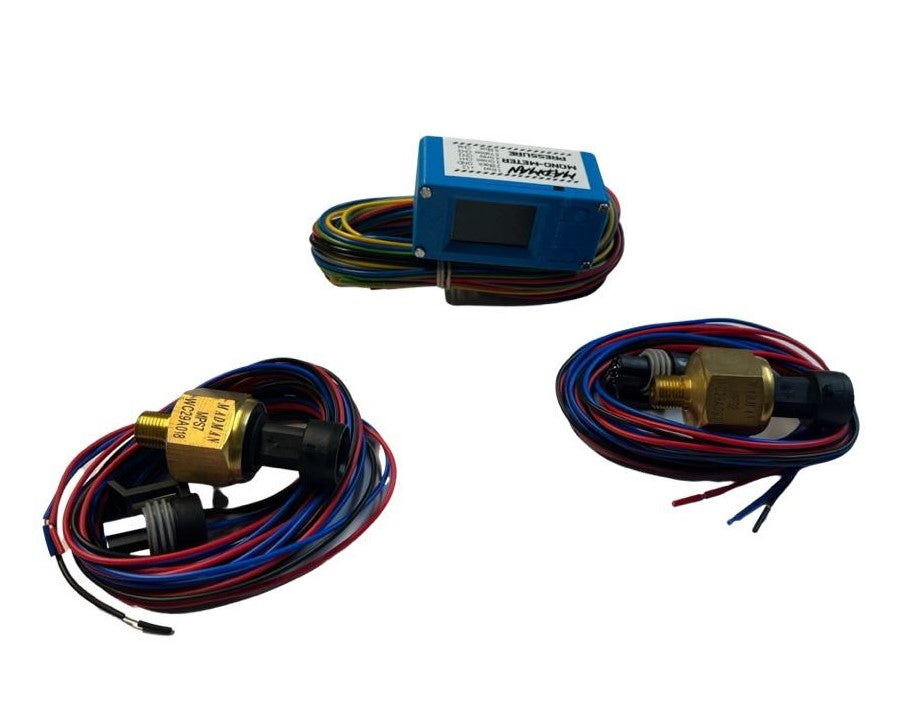

What you get in the box:

• 1x MONO Pressure unit
• 1x 2 Bar pressure sender
• 1x 7 Bar pressure sender

Standard features:

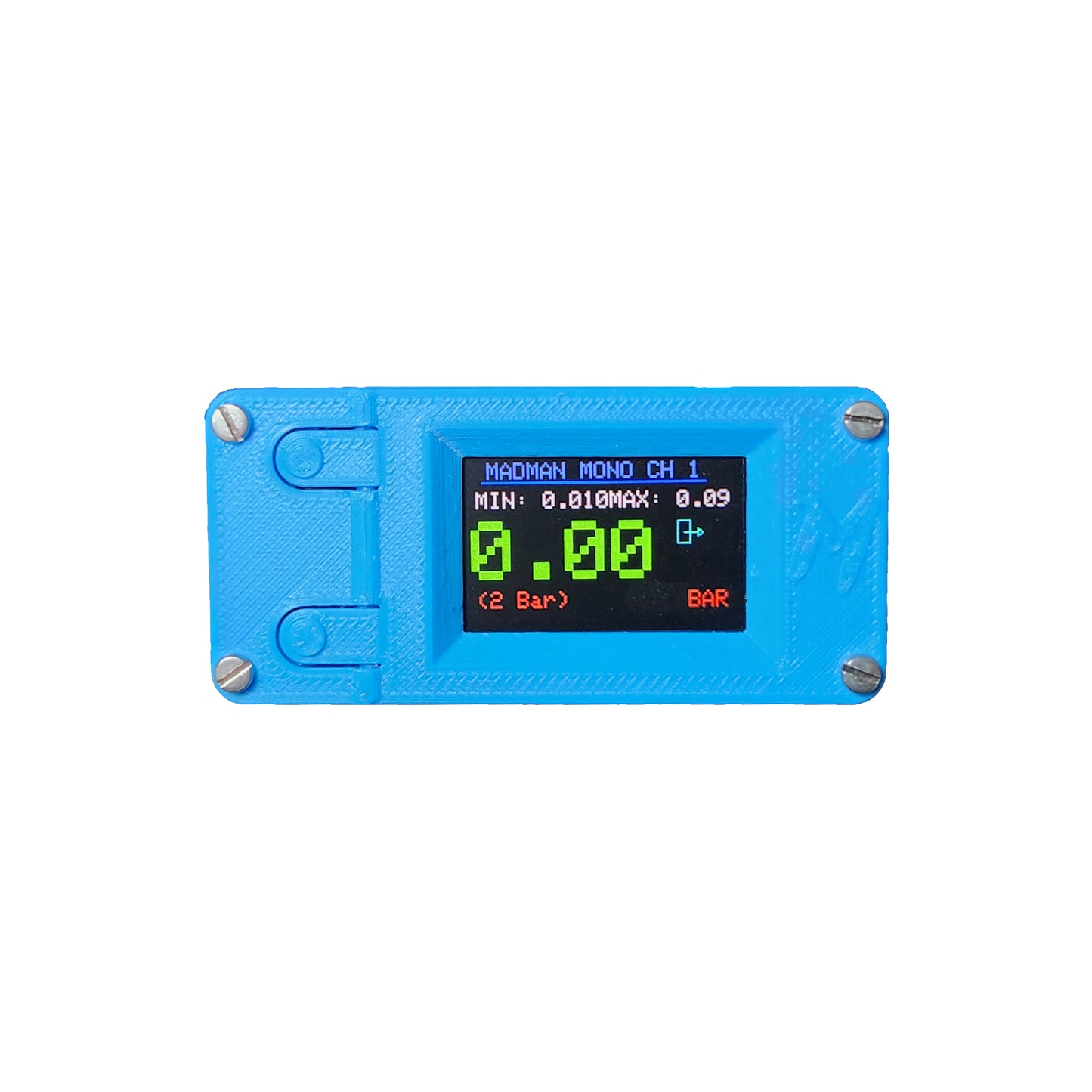

• Multi-Colour display screen with 2 control buttons
• Data Logging of all inputs to internal memory, downloadable to your mobile phone
• Max and Min Value display with reset
• Wide input voltage range for 12 or 24V applications
• Polarity protection for reverse polarity and over voltage
• Flash upgradable via your phone or pc
• 1 Year limited Warranty
