Kingpin

The Kingpin is an electronic fuelling controller that replaces the boost compensator assembly on the Bosch VE (and other licenced VE pumps).

The Kingpin absorbs the original functional settings of the Boost pin, Starwheel and Diaphragm and provides 3 customisable fuelling maps that you can change as required to suit your needs.

The interface provides 2 methods of fuelling adjustment:

1.      Select a specific fuelling percentage for each boost pressure point from 0 to 2 Bar

2.      Use the EZ-Fuelling function to dynamically adjust fuelling, while driving, to the specific boost point at that moment

The interface also provides for the entry of an EGT Limit (When an EGT probe is fitted - Purchased separately). The controller will use this EGT value to automatically reduce fuelling at a varying rate dependent on the rate of EGT increase such that it prevents exceeding the EGT limit, and /or automatically de-tune the fuel curve in the case of repeated EGT limit hits, thus preserving the integrity of the engine.

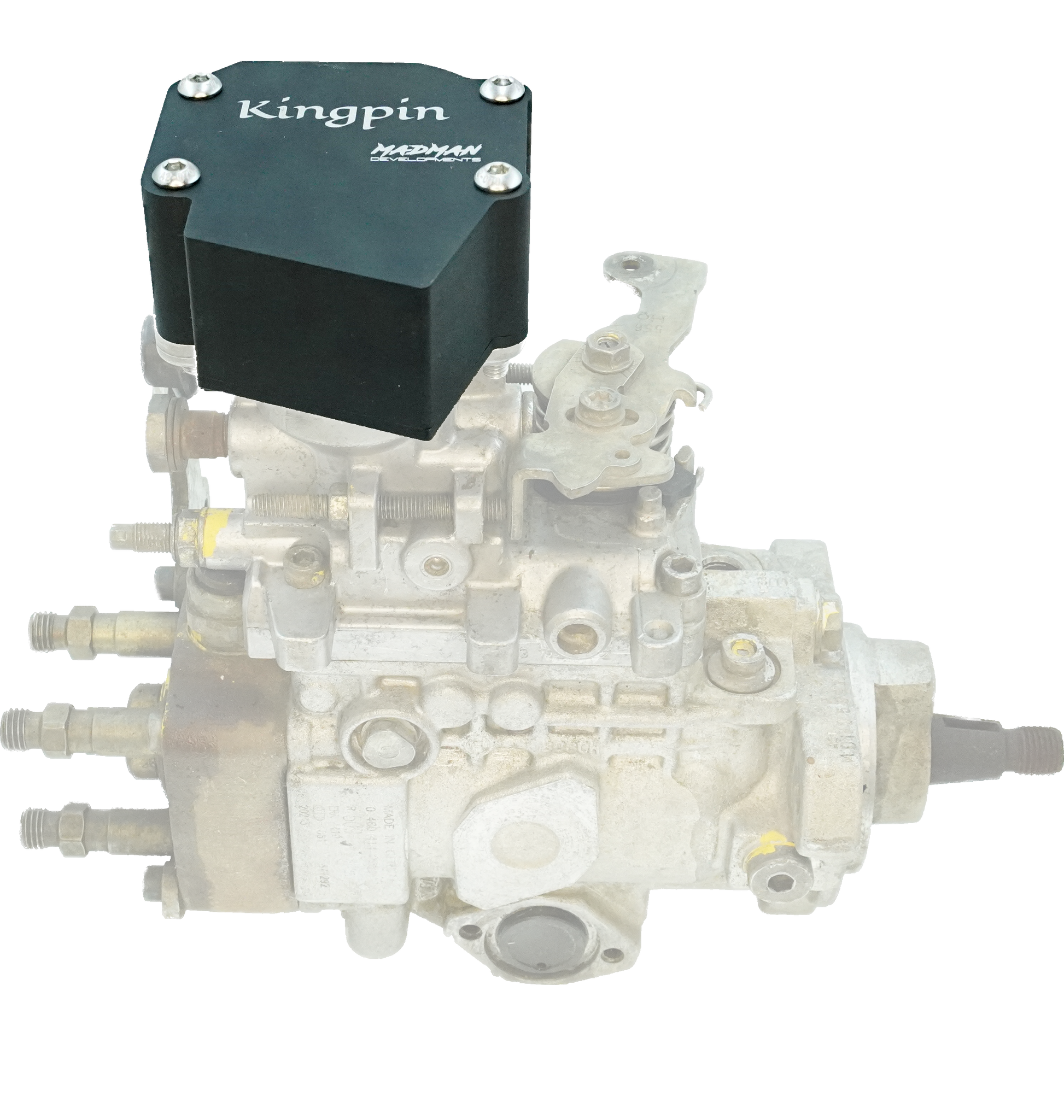

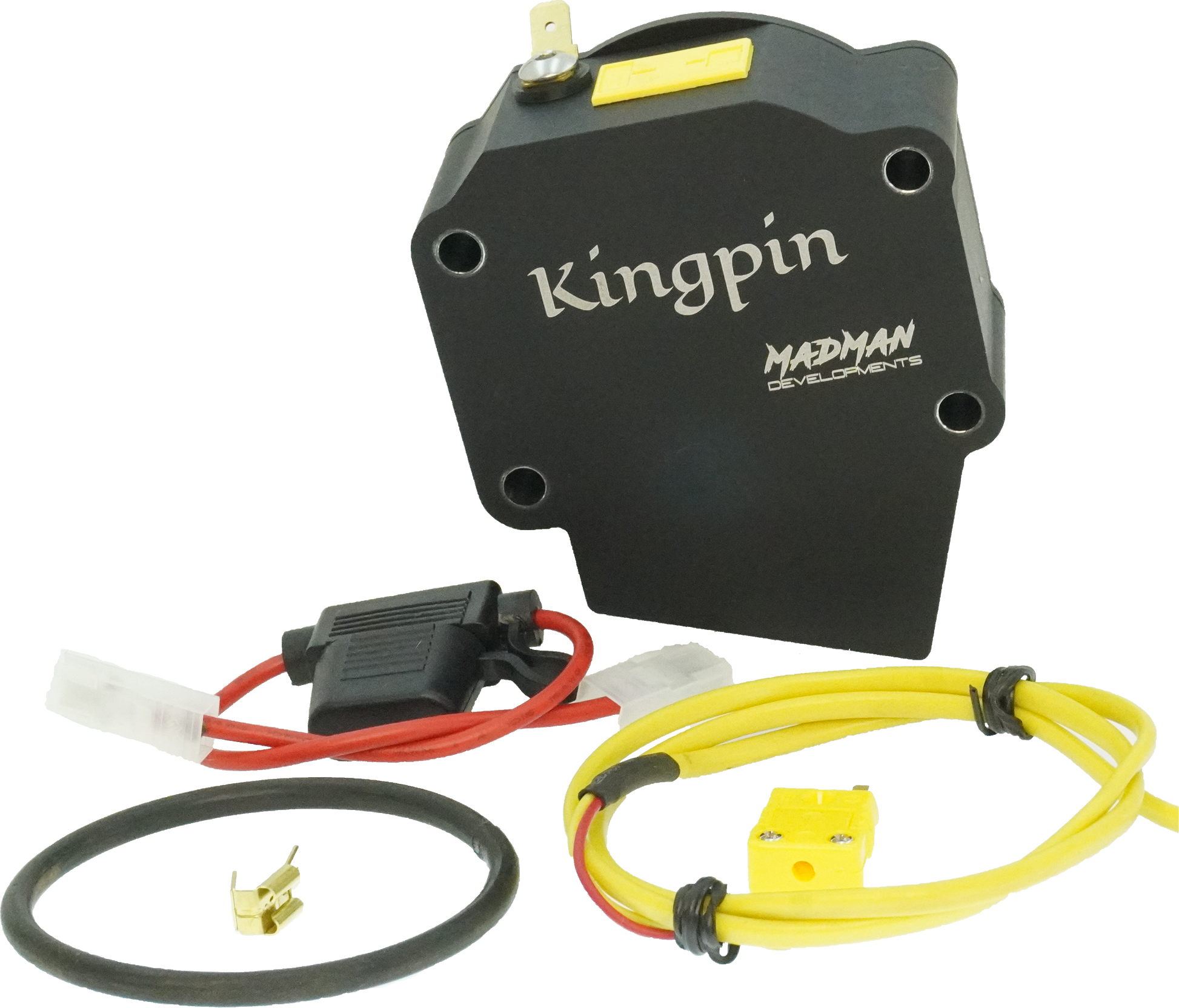

The unit is bolted directly onto the injection pump and connects to the original boost pipe and draws power via a fused lead directly from the injection pump solenoid.

This unit fits a range of engines, check the Main Product Page for more details.

The unit is protected to IP64 which is dust proof and splash proof, it should not be washed directly with a high pressure washer or submerged.

Download the Flyer and Manual or read more at the Main Product Page
