Madman
MONO Temp KIT
MONO Temp KIT
Couldn't load pickup availability

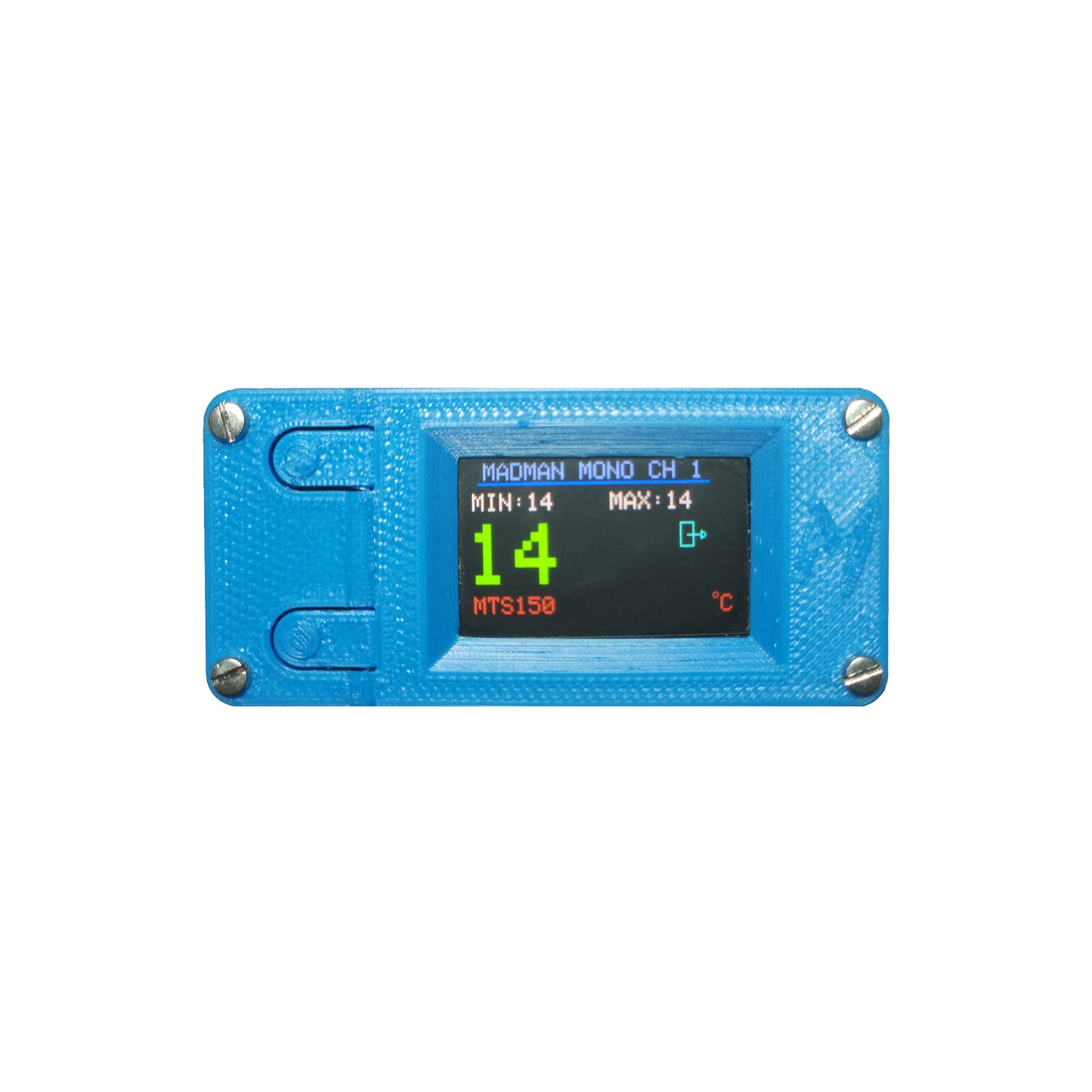

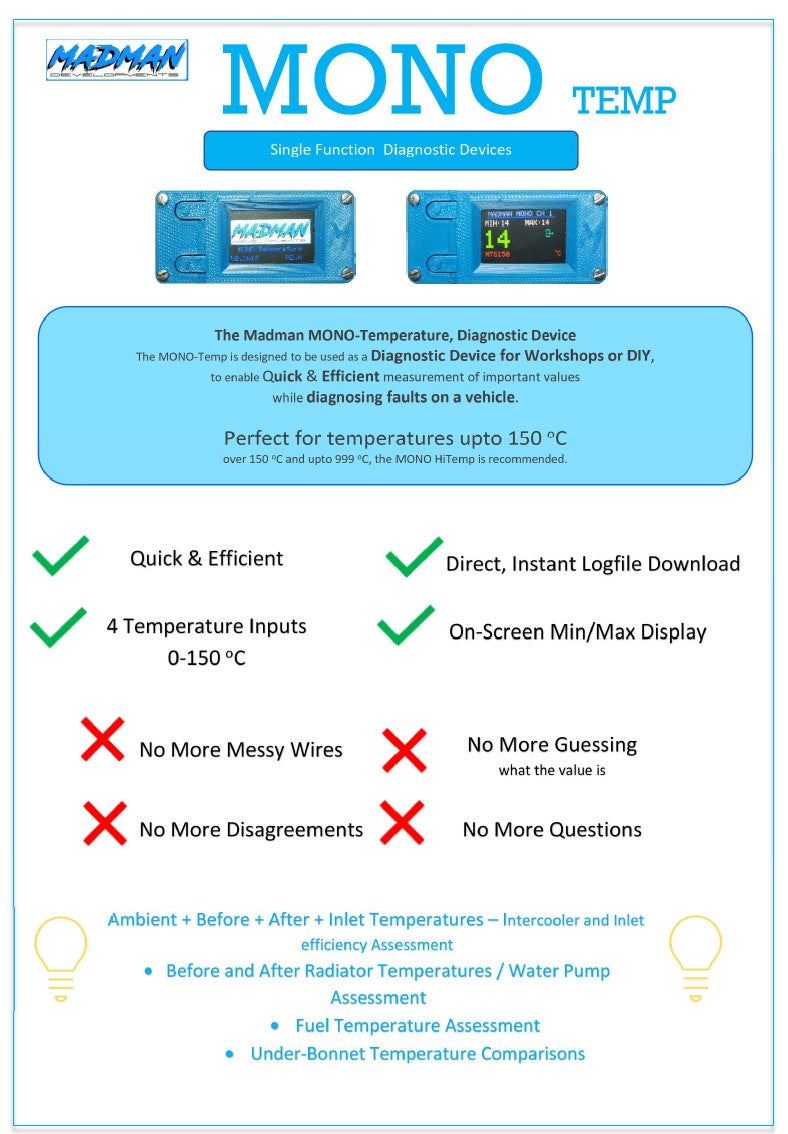

This Mono-Meter measures Temperature.
The units are simple and small with powerful features.
Can be used as a diagnostic tool for fault finding of temperature.
Main Features:
- 4 Temperature Inputs

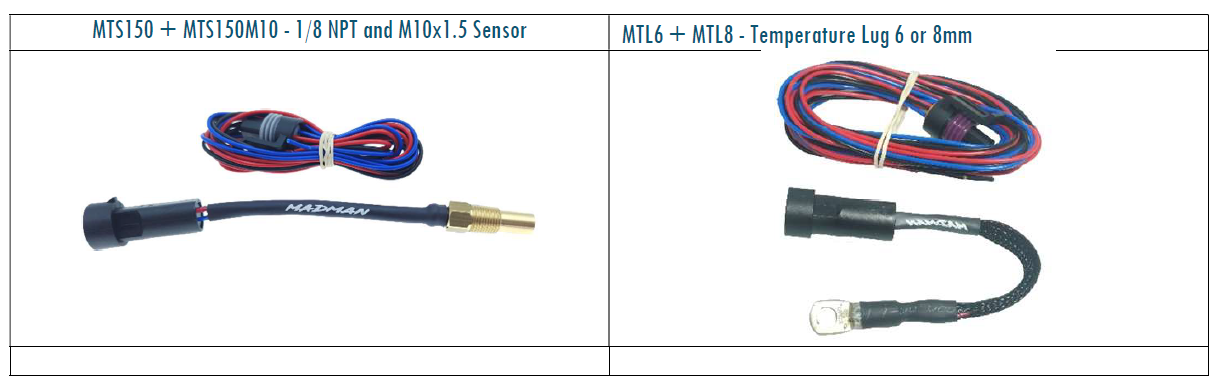

- Uses Madman MTS150 threaded sensors and/or
- Uses Madman MTL150 Lug sensors
- Min/Max Display
- Data logging to .csv file for all 4 channels
- Download log file via wi-fi
- The units do not contain any alarm functions
Applications:
- Ambient + Before + After + Inlet Temperatures – Intercooler and Inlet efficiency Assessment
- Before and After Radiator Temperatures / Water Pump Assessment
- Fuel Temperature Assessment
- Under-Bonnet Temperature Comparisons
Additional Options:
-
If more temperature measurements are needed, you can purchase 2 additional Madman Temperature Senders 0-150 degrees (part number MTS150).

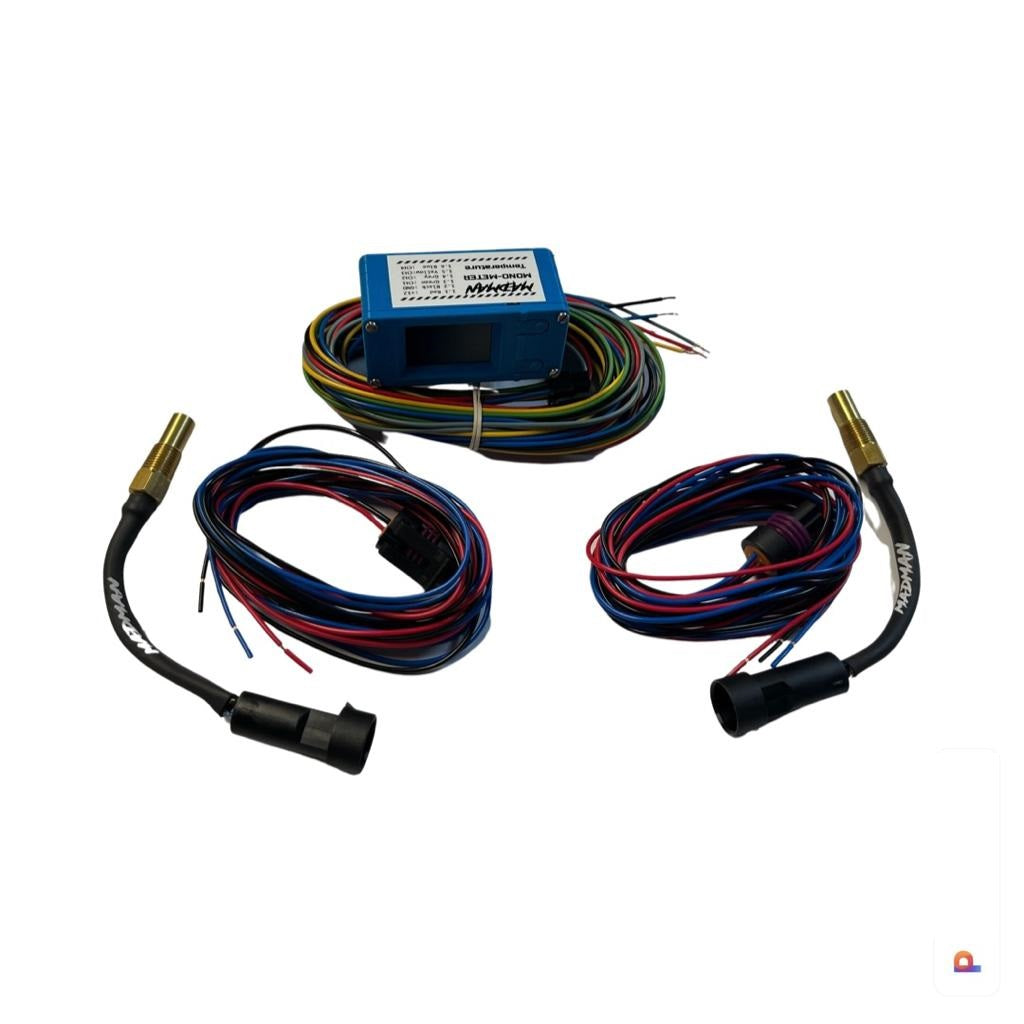

What you get in the box:
- 1x MONO Temp unit
- 2x Madman Temp Senders (MTS150)
Standard features:
- Multi-Colour display screen with 2 control buttons
- Data Logging of all inputs to internal memory, downloadable to your mobile phone
- Max and Min Value display with reset
- Wide input voltage range for 12 or 24V applications
- Polarity protection for reverse polarity and over voltage
- Flash upgradable via your phone or pc
- 1 Year limited Warranty
DIY ?
Installation is not difficult, however some basic tools and skills are needed. Take a look at our Videos and Docs, if you understand them, You should have no problems.
Install it for me please...
Sometimes you just can't manage to do everything, even if you can. We don't have any official installers in the USA yet, however, take the kit to your favourite repair place and ask them. We will be very happy to help them with the install, maybe they even become installers !
