Madman

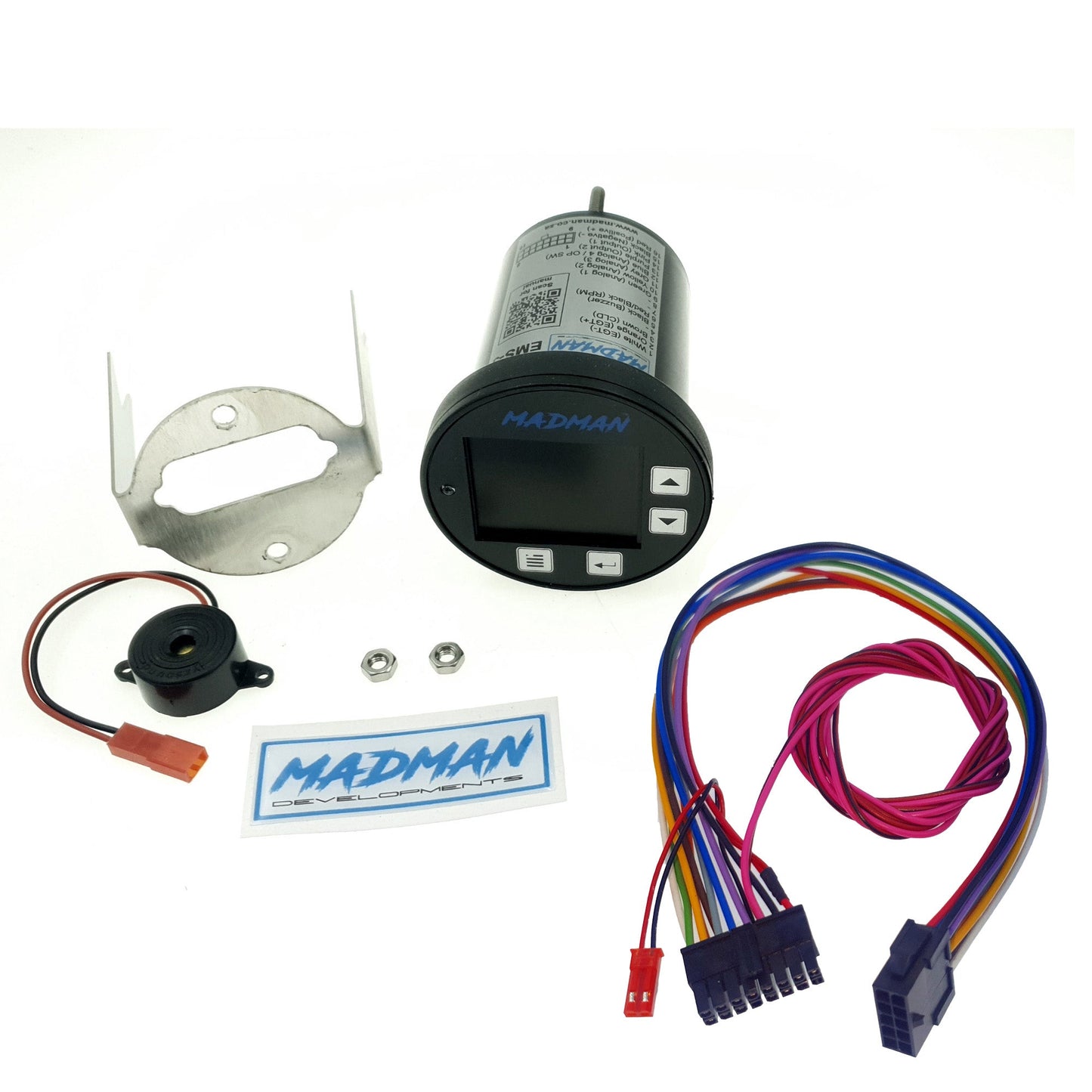

EMS3 UPGRADE Kit

EMS3 UPGRADE Kit

Regular price R 4,500.00
Regular price Sale price R 4,500.00
Sale Sold out
Shipping calculated at checkout.

This harness plugs into your old EMS1 or EMS2 harness and enables all the additional functions of the EMS3 unit.



Full Features

Requires additional sensors and adapters purchased separately or as a kit

  • High resolution, high brightness colour screen

  • 52mm round automotive housing

  • Dedicated EGT / Thermocouple input with timelapse display

  • Dedicated Coolant Level Detector input

  • Dedicated RPM input

  • External buzzer output

  • Customizable auto dimming sensor for bright or dark environments

  • 4 separately customisable analogue inputs can be used as:

    • Pressure Inputs such as Oil, Boost, Fuel, Air etc

    • Temperature Inputs such as Coolant, Oil, Air etc

    • Can also be used as On-Off- inputs

    • User editable input names

  • Voltage of supply  battery

  • Engine running hours / Service Timer with voltage trigger

  • Each function has customizable high and low 'Caution' and 'Alarm' set points

  • Each function has preset sensors or can be calibrated to suit almost any sensor

  • 2 Outputs, individually selectable from any function can be enabled to switch relay outputs

  • CAN Bus output for Datalogger integration (Purchased separately)

  • Flash upgradable software

View full details

DIY ?

Installation is not difficult, however some basic tools and skills are needed. Take a look at our Videos and Docs, if you understand them, You should have no problems.

Install it for me please...

Sometimes you just can't manage to do everything, even if you can. We don't have any official installers in the USA yet, however, take the kit to your favourite repair place and ask them. We will be very happy to help them with the install, maybe they even become installers !
